Arduino Bluetooth Car

A Bluetooth and Serial Monitor controlled Arduino car with motor control, obstacle detection, and hands-on embedded systems design.

Description

This is an Arduino-based car project controlled through both a Bluetooth app using an HC-05 module and the Arduino IDE Serial Monitor. The car uses an L293D motor driver to control four DC motors for forward, backward, left, and right movement.

The system also includes an ultrasonic sensor and a servo motor for automatic obstacle detection and avoidance, allowing the car to navigate safely around objects.

Pictures

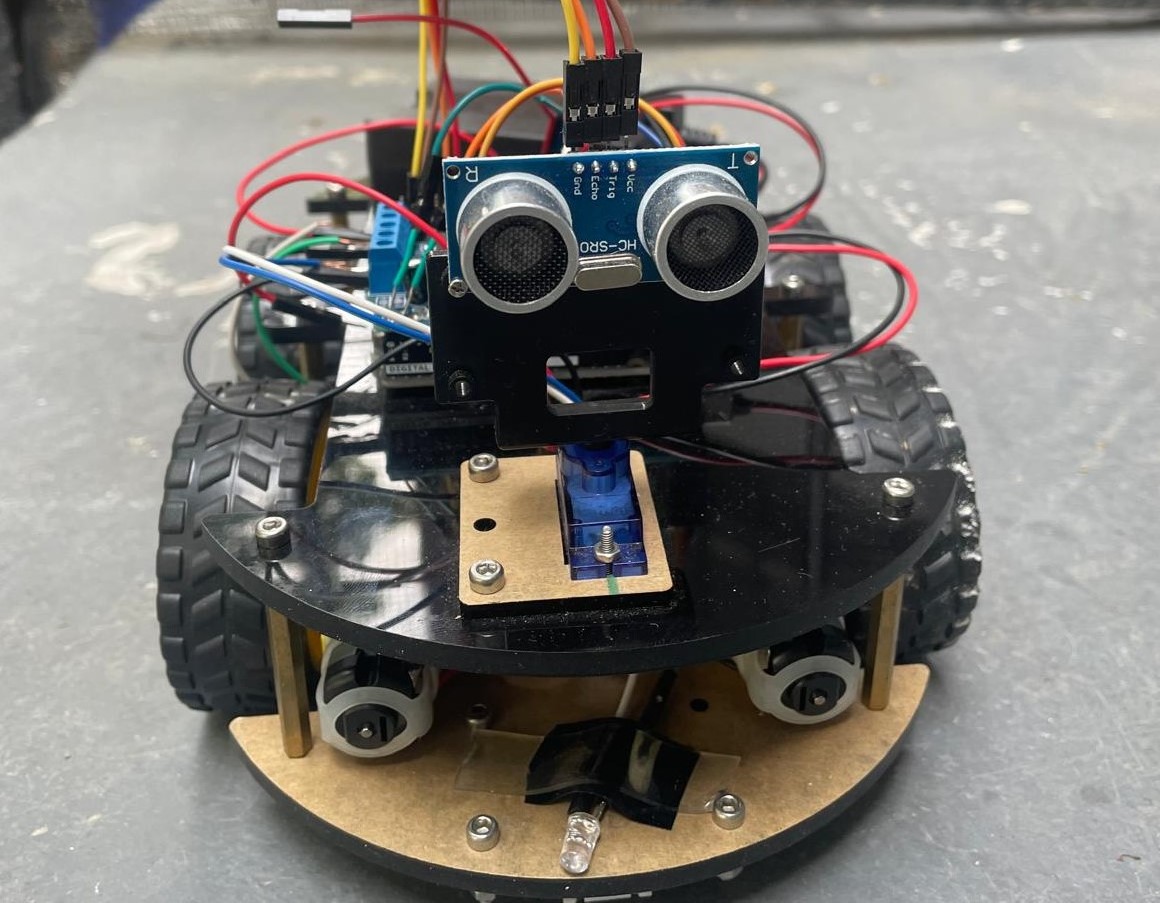

Front view of the Arduino Bluetooth car
Front view showing the ultrasonic sensor mounted on the car for obstacle detection.

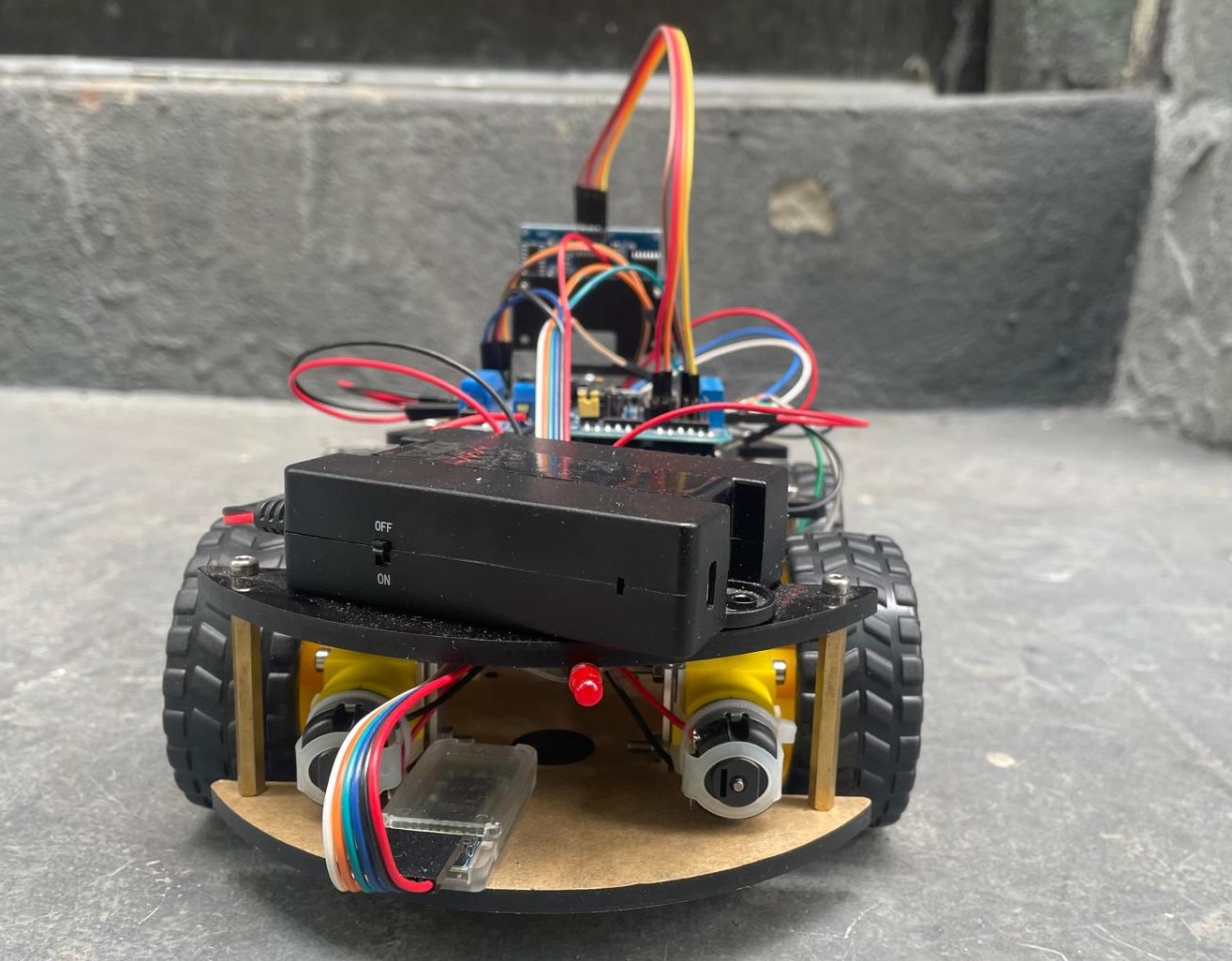

Back view of the Arduino Bluetooth car
Back view showing the battery holder, wiring, and rear wheel assembly.

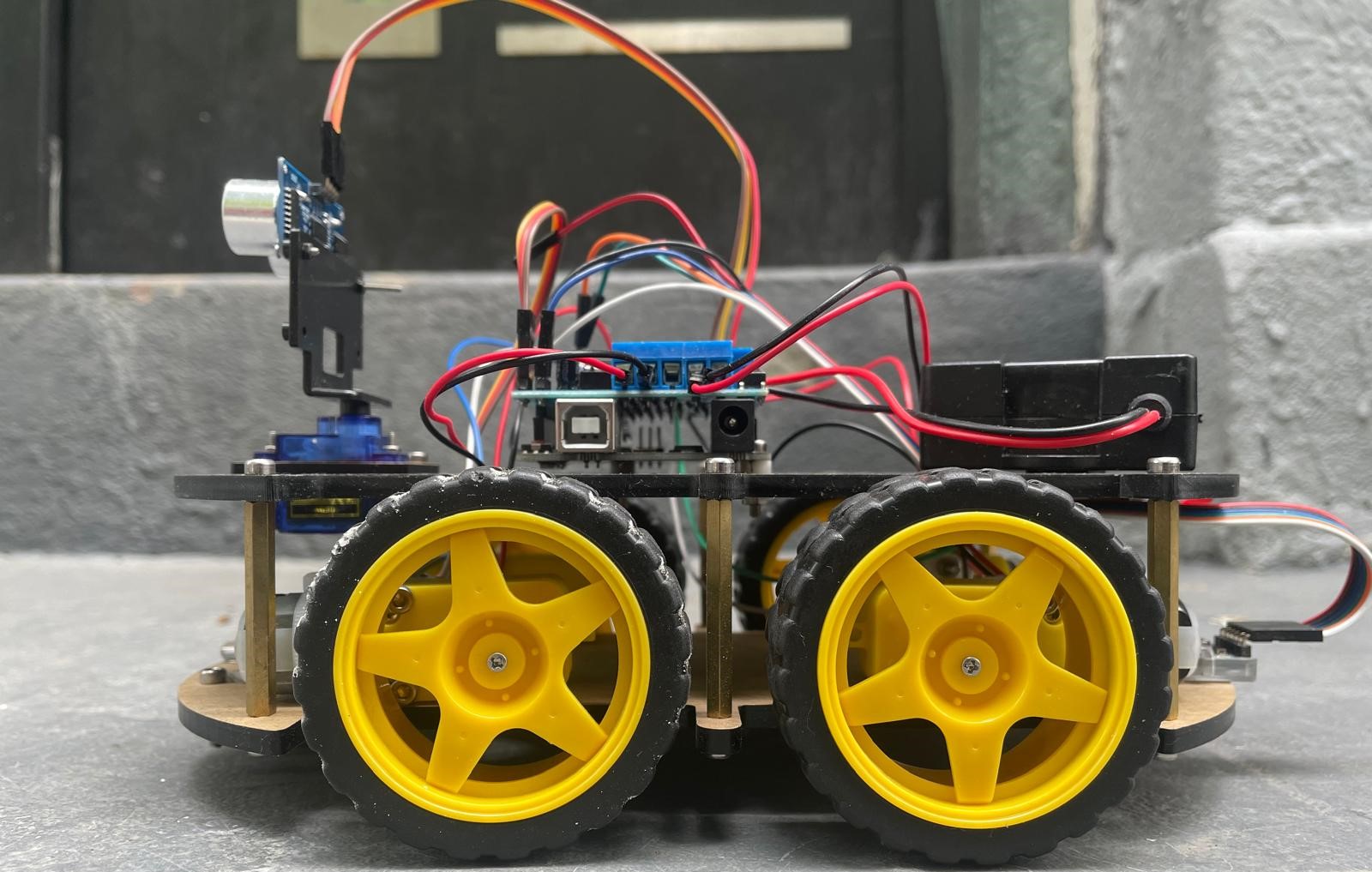

Side view of the Arduino Bluetooth car
Side view showing the chassis, motors, wheels, and wiring layout.

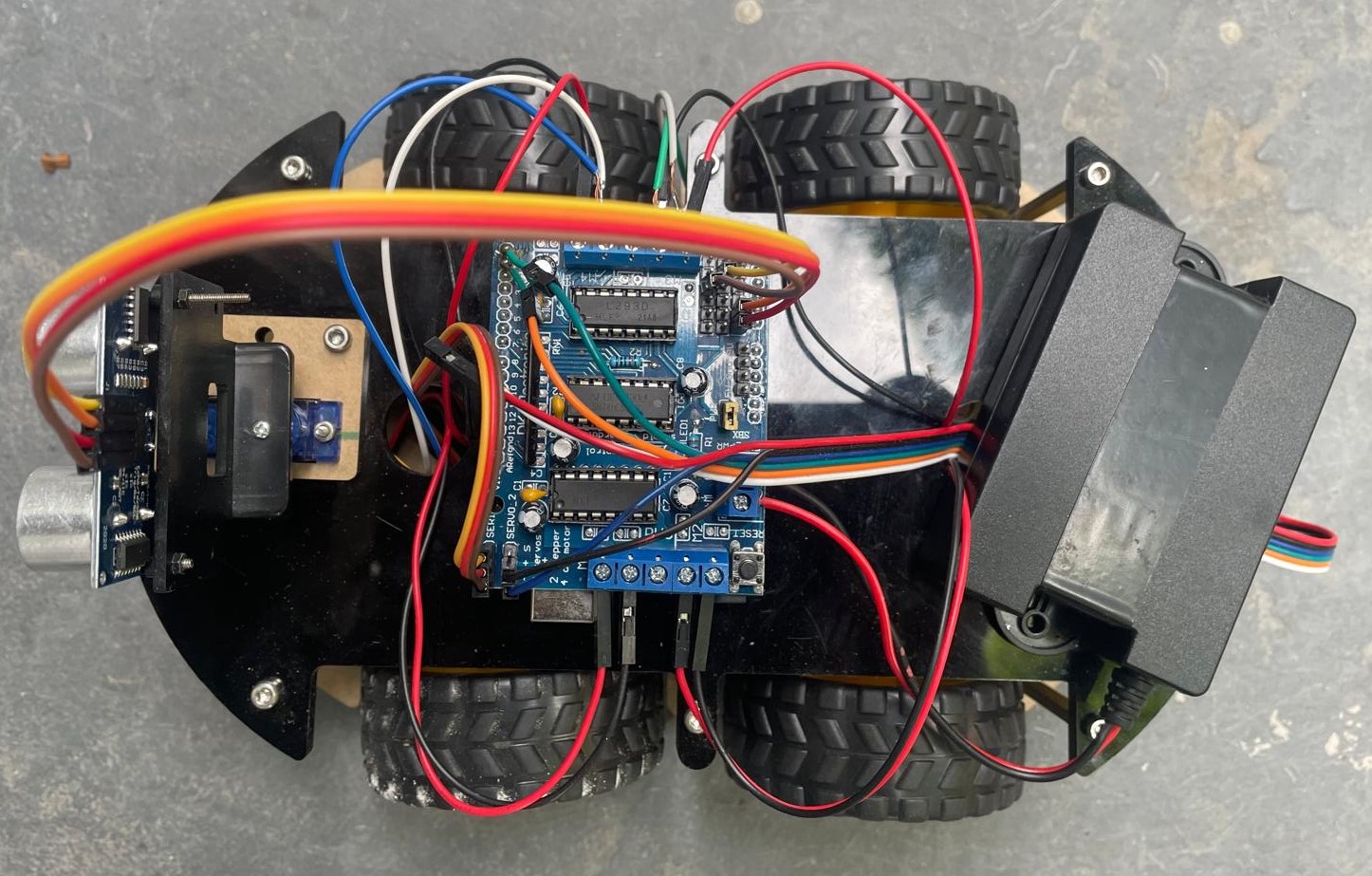

Top view of the Arduino Bluetooth car
Top view showing the main electronics and component placement on the chassis.

Video Demo

This was the demo video.
